Ultra WQHD Monitor not working with kde or xfce

moaxcp · October 26, 2022, 1:24am

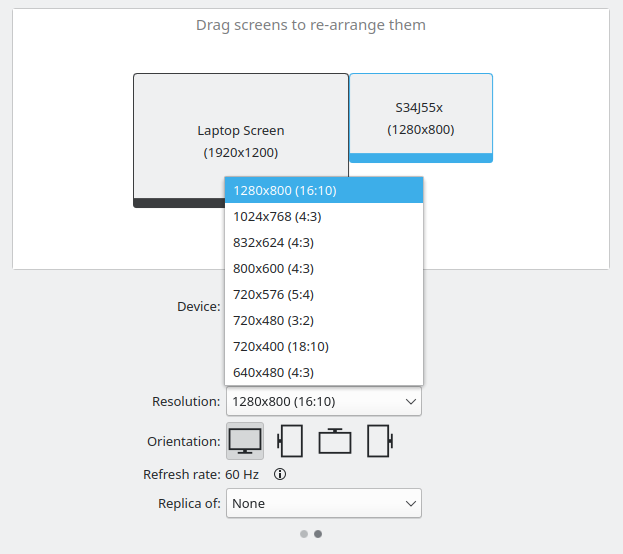

I bought a monitor that I haven’t been able to get working with nixos. It works with my mac computer. To troubleshot I have check the display dialogs. The monitor shows up but the correct resolutions are not there.

When I check the xorg log this is what I see after plugging in the monitor.

Oct 25 21:08:33 n2 xserver-wrapper[1309]: (II) modeset(0): EDID vendor "SHP", prod id 5323
Oct 25 21:08:33 n2 xserver-wrapper[1309]: (II) modeset(0): Printing DDC gathered Modelines:
Oct 25 21:08:33 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1920x1200"x0.0  154.00  1920 1968 2000 2080  1200 1203 1209 1235 -hsync -vsync (74.0 kHz eP)
Oct 25 21:08:33 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1920x1200"x0.0  123.20  1920 1968 2000 2080  1200 1203 1209 1235 -hsync -vsync (59.2 kHz e)
Oct 25 21:08:33 n2 xserver-wrapper[1309]: (--) modeset(0): HDMI max TMDS frequency 300000KHz
Oct 25 21:08:34 n2 xserver-wrapper[1309]: (II) modeset(0): Allocate new frame buffer 3200x1200 stride
Oct 25 21:08:35 n2 xserver-wrapper[1309]: (WW) modeset(0): hotplug event: connector 268's link-state is BAD, tried resetting the current mode. You may be leftwith a black screen if this fails...
Oct 25 21:08:35 n2 xserver-wrapper[1309]: (II) modeset(0): EDID vendor "SHP", prod id 5323
Oct 25 21:08:35 n2 xserver-wrapper[1309]: (II) modeset(0): Printing DDC gathered Modelines:
Oct 25 21:08:35 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1920x1200"x0.0  154.00  1920 1968 2000 2080  1200 1203 1209 1235 -hsync -vsync (74.0 kHz eP)
Oct 25 21:08:35 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1920x1200"x0.0  123.20  1920 1968 2000 2080  1200 1203 1209 1235 -hsync -vsync (59.2 kHz e)
Oct 25 21:08:35 n2 xserver-wrapper[1309]: (--) modeset(0): HDMI max TMDS frequency 300000KHz
Oct 25 21:08:35 n2 xserver-wrapper[1309]: (WW) modeset(0): hotplug event: connector 268's link-state is BAD, tried resetting the current mode. You may be leftwith a black screen if this fails...
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): EDID vendor "SAM", prod id 3953
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Using hsync ranges from config file
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Using vrefresh ranges from config file
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Printing DDC gathered Modelines:
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "3440x1440"x0.0  319.75  3440 3488 3520 3600  1440 1443 1453 1481 +hsync -vsync (88.8 kHz eP)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "3440x1440"x0.0  265.25  3440 3488 3520 3600  1440 1443 1453 1474 +hsync -vsync (73.7 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "2560x1080"x0.0  198.00  2560 2808 2852 3000  1080 1084 1089 1100 +hsync +vsync (66.0 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "2560x1440"x0.0  241.50  2560 2608 2640 2720  1440 1443 1448 1481 +hsync -vsync (88.8 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1920x1080"x0.0  148.50  1920 2008 2052 2200  1080 1084 1089 1125 +hsync +vsync (67.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "3440x1440"x0.0  402.75  3440 3488 3520 3600  1440 1443 1453 1492 +hsync -vsync (111.9 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1920x1080"x0.0  148.50  1920 2448 2492 2640  1080 1084 1089 1125 +hsync +vsync (56.2 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1280x720"x0.0   74.25  1280 1390 1430 1650  720 725 730 750 +hsync +vsync (45.0 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1280x720"x0.0   74.25  1280 1720 1760 1980  720 725 730 750 +hsync +vsync (37.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "720x480"x0.0   27.00  720 736 798 858  480 489 495 525 -hsync -vsync (31.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "720x576"x0.0   27.00  720 732 796 864  576 581 586 625 -hsync -vsync (31.2 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "800x600"x0.0   40.00  800 840 968 1056  600 601 605 628 +hsync +vsync (37.9 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "800x600"x0.0   36.00  800 824 896 1024  600 601 603 625 +hsync +vsync (35.2 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "640x480"x0.0   31.50  640 656 720 840  480 481 484 500 -hsync -vsync (37.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "640x480"x0.0   31.50  640 664 704 832  480 489 492 520 -hsync -vsync (37.9 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "640x480"x0.0   30.24  640 704 768 864  480 483 486 525 -hsync -vsync (35.0 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "640x480"x0.0   25.18  640 656 752 800  480 490 492 525 -hsync -vsync (31.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "720x400"x0.0   28.32  720 738 846 900  400 412 414 449 -hsync +vsync (31.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1280x1024"x0.0  135.00  1280 1296 1440 1688  1024 1025 1028 1066 +hsync +vsync (80.0 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1024x768"x0.0   78.75  1024 1040 1136 1312  768 769 772 800 +hsync +vsync (60.0 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1024x768"x0.0   75.00  1024 1048 1184 1328  768 771 777 806 -hsync -vsync (56.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1024x768"x0.0   65.00  1024 1048 1184 1344  768 771 777 806 -hsync -vsync (48.4 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "832x624"x0.0   57.28  832 864 928 1152  624 625 628 667 -hsync -vsync (49.7 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "800x600"x0.0   49.50  800 816 896 1056  600 601 604 625 +hsync +vsync (46.9 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "800x600"x0.0   50.00  800 856 976 1040  600 637 643 666 +hsync +vsync (48.1 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1152x864"x0.0  108.00  1152 1216 1344 1600  864 865 868 900 +hsync +vsync (67.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1280x800"x0.0   71.00  1280 1328 1360 1440  800 803 809 823 +hsync -vsync (49.3 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1280x1024"x0.0  108.00  1280 1328 1440 1688  1024 1025 1028 1066 +hsync +vsync (64.0 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1440x900"x0.0   88.75  1440 1488 1520 1600  900 903 909 926 +hsync -vsync (55.5 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1600x900"x60.0  119.00  1600 1696 1864 2128  900 901 904 932 -hsync +vsync (55.9 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (II) modeset(0): Modeline "1680x1050"x0.0  119.00  1680 1728 1760 1840  1050 1053 1059 1080 +hsync -vsync (64.7 kHz e)
Oct 25 21:08:36 n2 xserver-wrapper[1309]: (--) modeset(0): HDMI max TMDS frequency 300000KHz

There are some warnings but I think they are for the laptop display, not the new monitor. When the monitor is plugged in it is still blank. Any thoughts on what else I can do?

igel · October 26, 2022, 8:22am

what is your config like ?

e.g.
hardware.video.hidpi.enable = lib.mkDefault true;

moaxcp · October 26, 2022, 7:39pm

I don’t see any settings for hardware.video

moaxcp · October 27, 2022, 3:46pm

I added the option

hardware.video.hidpi.enable = true;

But I still have the same issue. This monitor is connected using a usbc to hdmi cable.

Atemu · October 28, 2022, 3:16am

Do the HDMI adapter and cable work on other computers or operating systems?

3440x1440 is a pretty high resolution and it might not be capable of that.

Have you tried wayland?

What driver is this under anyway?
