How to add extra octoprint plugins to the existing plugins attribute set?

Help
1

Hi folks!

I started using NixOS a few weeks ago and I’m still in the process of connecting the dots with using the Nix language.

I need help with customizing the octoprint package with its plugins by adding the PrettyGCode plugin to it via my /etc/nixos/configuration.nix file.

If this approach is not possible, what other approaches can I use?

2

This comment suggests you should use pkgs.octoprint.override { packageOverrides = self: super: { pluginName = ...; }; }.

3

Unfortunately, I’m still lost and not able to get it working after much experimentation and looking around for other solutions related to what you shared. I got burnt out afterwards.

Here is what I’m using in my environment.systemPackages. I don’t know what I’m doing wrong:

    (octoprint.override {
      packageOverrides = self: super: {
        prettygcode = python3.buildPythonPackage rec {
          pname = "PrettyGCode";
          version = "1.2.4";

          src = fetchFromGitHub {
            owner = "Kragrathea";
            repo = "OctoPrint-PrettyGCode";
            rev = "v${version}";
            sha256 = "958259072a8645b5279ed782e4dd020e92ab862384e966fe97a5eedfe583708c";
          };
          doCheck = false;
        };
      };
    })
4

Hi folks,

I decided to take the path of least resistance by setting up a local cloned nixpkgs repository in my user home directory. I had to edit the plugins.nix file by adding and adjusting my plugin nix expression there.

While it would be a “nice to have” with it customized in the configuration.nix file, I’m fine with using git and pulling from the nixos-unstable branch whenever I need to upgrade.

So, I’ll go ahead and contribute my steps here so it might help someone reading this in the future:

NOTE:
$: command as user
#: command as root

$ git clone https://github.com/NixOS/nixpkgs.git
$ cd nixpkgs
$ git checkout nixos-unstable
$ $EDITOR ~/nixpkgs/pkgs/applications/misc/octoprint/plugins.nix

Add the following under the inherit buildPlugin line:

  prettygcode = buildPlugin rec {
    pname = "PrettyGCode";
    version = "1.2.4";

    src = fetchFromGitHub {
      owner = "Kragrathea";
      repo = "OctoPrint-PrettyGCode";
      rev = "v${version}";
      sha256 = "sha256-q/B2oEy+D6L66HqmMkvKfboN+z3jhTQZqt86WVhC2vQ=";
    };

    meta = with lib; {
      description = "Adds a 3D GCode visualizer tab. It displays colored lines to show what the printer is doing and animates progress during printing.";
      homepage = "https://github.com/Kragrathea/OctoPrint-PrettyGCode";
      license = licenses.agpl3Only;
      maintainers = with maintainers; [ ];
    };
  };

# $EDITOR /etc/nixos/configuration.nix

Add the plugin if not already:

  services.octoprint.plugins = plugins: with plugins; [ prettygcode ];

Finally, wrap it up with a rebuild! Make sure to persistently use the -I nixpkgs=/path/to/cloned/nixpkgs argument for each rebuild from then on.

# nixos-rebuild switch -I nixpkgs=/path/to/cloned/nixpkgs
5

Ah, I was missing a piece of the puzzle. The nixos module provides the list of plugins. So you need to use an overlay to override it, since the module doesn’t expose a .package option. (It probably should)

  nixpkgs.overlays = [(self: super: {
    octoprint = super.octoprint.override {
      packageOverrides = pyself: pysuper: {
        octoprint-prettygcode = pyself.buildPythonPackage rec {
          pname = "PrettyGCode";
          version = "1.2.4";
          src = self.fetchFromGitHub {
            owner = "Kragrathea";
            repo = "OctoPrint-PrettyGCode";
            rev = "v${version}";
            sha256 = "sha256-q/B2oEy+D6L66HqmMkvKfboN+z3jhTQZqt86WVhC2vQ=";
          };
          propagatedBuildInputs = [ pysuper.octoprint ];
          doCheck = false;
        };
      };
    };
  })];
  services.octoprint.enable = true;
  services.octoprint.plugins = plugins: with plugins; [ octoprint-prettygcode ];

in your configuration.nix should do the trick I think. It builds, at least.

1 Like
6

Ah, gotcha!

And thank you, that really did the trick! That propagatedBuildInputs was the missing piece for sure.

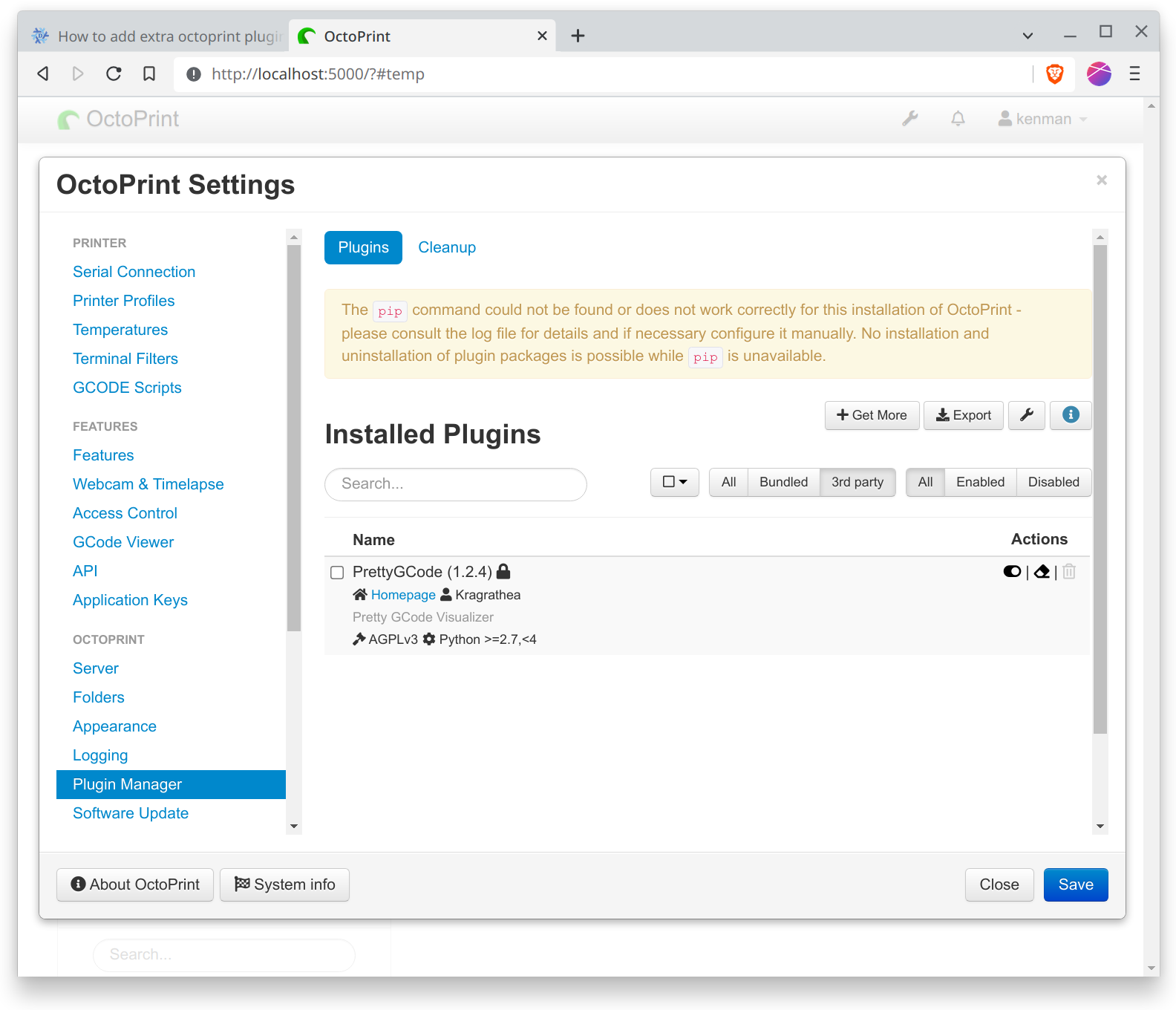

The PrettyGCode plugin shows up in my OctoPrint’s web UI instance even after I stopped using my workaround solution.

Success
Success1584×1360 236 KB

:v:

7

I copied that from here, in case you’re interested:

1 Like
