Quickemu --vm windows-11.conf # ERROR! SecureBoot was requested but no SecureBoot capable firmware was found. Please install OVMF firmware

[igel]

 - system: `"x86_64-linux"`
 - host os: `Linux 5.15.43, NixOS, 22.05 (Quokka), 22.05.751.8b66e3f2ebc`
 - multi-user?: `yes`
 - sandbox: `yes`
 - version: `nix-env (Nix) 2.8.1`
 - channels(root): `"home-manager-22.05.tar.gz, nixos-22.05"`
 - channels(usera): `""`
 - nixpkgs: `/nix/var/nix/profiles/per-user/root/channels/nixos`

{
  services.qemuGuest.enable = true;
  virtualisation = {
    kvmgt.enable = true;

    libvirtd  = {
      allowedBridges = [
        "nm-bridge"
        "virbr0"
      ];

      enable = true;
      qemu.runAsRoot = false;
      qemu.ovmf.enable = true ;
    };
  };

quickget windows 11

Getting Windows 11 URL...
Downloading Windows 11 [22000.318]...
windows-11/virtio-win.iso                                  100%[++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++>] 507.00M   316KB/s    in 0.2s
Making unattended.iso

To start your Windows virtual machine run:
    quickemu --vm windows-11.conf

quickemu --vm windows-11.conf

Quickemu 3.15 using /nix/store/rip5wzqm2wvf33v8qlzg85aa4pgjyhg3-qemu-7.0.0/bin/qemu-system-x86_64 v7.0.0
 - Host:     "NixOS 22.05 (Quokka)" running Linux 5.15 (nixosP34)
 - CPU:      Intel(R) Core(TM) i7-10700 CPU @ 2.90GHz
 - CPU VM:   1 Socket(s), 4 Core(s), 2 Thread(s), 16G RAM
ERROR! SecureBoot was requested but no SecureBoot capable firmware was found.
       Please install OVMF firmware.

Secure boot in “bios” was deactivated when installing nixos while OVMFFull was installed

---

How to configure qemu/quickemu to start e.g. win11 in nixos correctly?

[adomixaszvers]

I have installed Windows 11 VM but it was done on Virt Machine Manager. My current libvirtd config is like this:

  virtualisation.libvirtd = {
    enable = true;
    qemu = {
      runAsRoot = false;
      ovmf = {
        enable = true;
        package = pkgs.OVMFFull;
      };
      swtpm.enable = true;
    };
  };

.
Also, I have looked at quickemu code. It seems like it searches for OVMF on directories which are not provided by NixOS. Try exporting those variables before running quickemu:

export ENV_EFI_CODE_SECURE=/run/libvirt/nix-ovmf/OVMF_CODE.fd ENV_EFI_VARS_SECURE=/run/libvirt/nix-ovmf/OVMF_VARS.fd

.

[igel]

thanks, that was a step forward

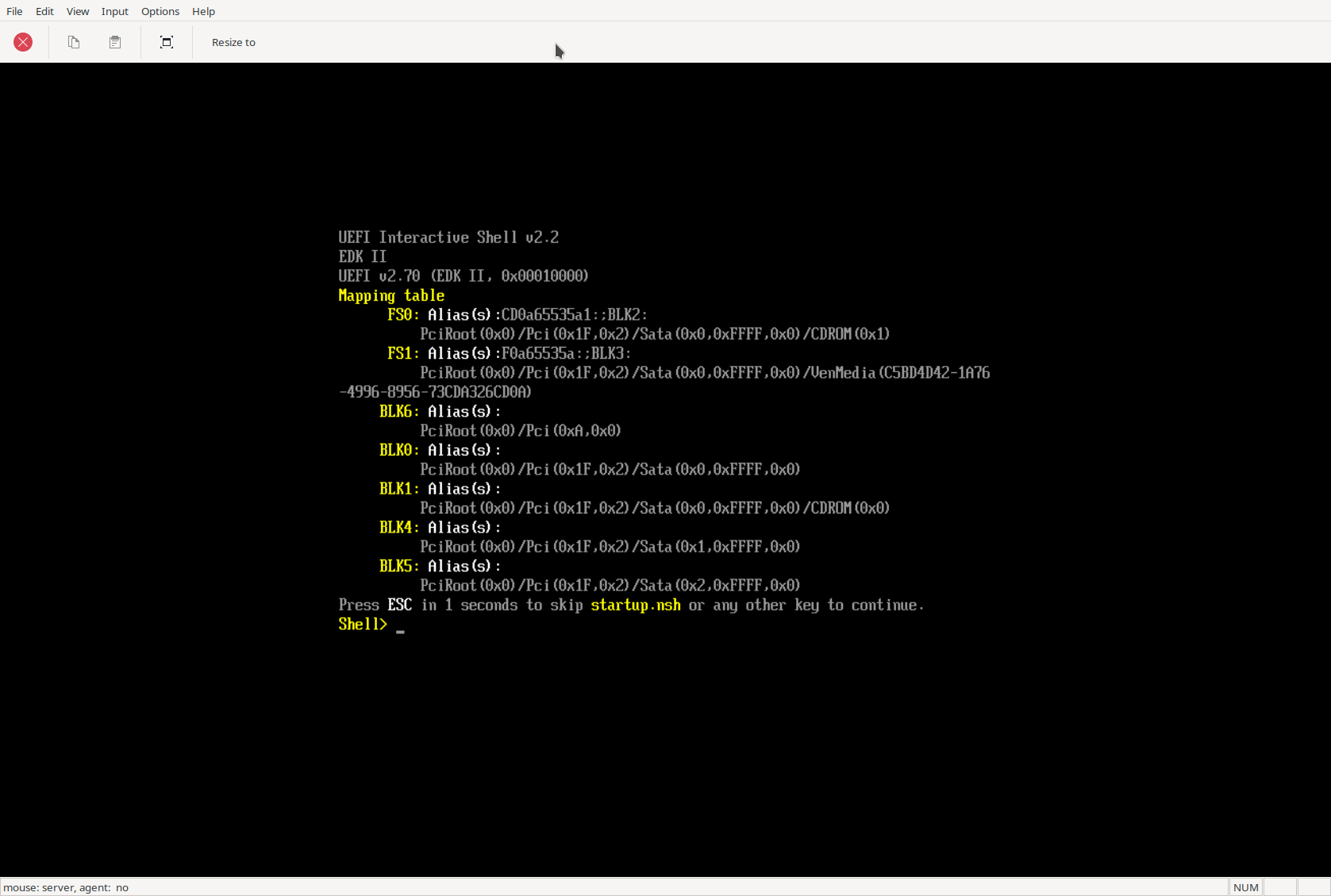

but after starting there are issues (not sure if that is nixos related)

quickemu --vm windows-11.conf # --display spice

Quickemu 3.15 using /nix/store/rip5wzqm2wvf33v8qlzg85aa4pgjyhg3-qemu-7.0.0/bin/qemu-system-x86_64 v7.0.0
 - Host:     "NixOS 22.05 (Quokka)" running Linux 5.15 (nixosP34)
 - CPU:      Intel(R) Core(TM) i7-10700 CPU @ 2.90GHz
 - CPU VM:   1 Socket(s), 4 Core(s), 2 Thread(s), 16G RAM
 - EFI:      WARNING! /run/libvirt/nix-ovmf/OVMF_CODE.fd is a symlink.
             Resolving to... /nix/store/k42akcjj7yk8srkpilf3ddrykh7clbr9-OVMF-202202-fd/FV/OVMF_CODE.fd
 - BOOT:     EFI (Windows), OVMF (/nix/store/k42akcjj7yk8srkpilf3ddrykh7clbr9-OVMF-202202-fd/FV/OVMF_CODE.fd), SecureBoot (on).
 - Disk:     windows-11/disk.qcow2 (64G)
             Looks unused, booting from windows-11/Win11_EnglishInternational_x64v1.iso
 - MSR:      WARNING! Ignoring unhandled Model-Specific Registers is disabled.

             echo 1 | sudo tee /sys/module/kvm/parameters/ignore_msrs

             If you are unable to run macOS or Windows VMs then run the above 👆
             This will enable ignoring of unhandled MSRs until you reboot the host.
             You can make this change permenant by running: 'quickemu --ignore-msrs-always'
 - Boot ISO: windows-11/Win11_EnglishInternational_x64v1.iso
 - CD-ROM:   windows-11/virtio-win.iso
 - Display:  SPICE, qxl-vga, GL (on), VirGL (off)
 - ssh:      On host:  ssh user@localhost -p 22220
 - SPICE:    On host:  spicy --title "windows-11" --port 5930 --spice-shared-dir /home/ae/Public
 - WebDAV:   On guest: dav://localhost:9843/
 - TPM:      windows-11/windows-11.swtpm-sock (322773)
qxl_send_events: spice-server bug: guest stopped, ignoring
 - Process:  Starting windows-11.conf as windows-11 (322778)
