Unable to make gnome wayland use my Nvidia 3050 laptop dgpu

i have been using nixos for over an year now and have a quite decked out config, i was never able to make firefox use my dgpu other than one time where i pinned my driver to 535. but after i updated i couldnt go back to it (the build fails and i have tried many times, including changing kernel to 6.6). not i am on latest driver 570.86.16. the following config took hours out of my life multiple times over the past year, i took snippets from @TLATER and @eljamm.

nvidia-smi
Mon Feb  3 09:20:27 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 570.86.16              Driver Version: 570.86.16      CUDA Version: 12.8     |
|-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  NVIDIA GeForce RTX 3050 ...    Off |   00000000:01:00.0 Off |                  N/A |
| N/A   28C    P8              6W /   60W |      12MiB /   4096MiB |      0%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

+-----------------------------------------------------------------------------------------+
| Processes:                                                                              |
|  GPU   GI   CI              PID   Type   Process name                        GPU Memory |
|        ID   ID                                                               Usage      |
|=========================================================================================|
|    0   N/A  N/A            3120      G   ...me-shell-47.3/bin/gnome-shell          1MiB |
+-----------------------------------------------------------------------------------------+

the vram usage is always stuck on 1MiB for Gnome-Shell and no matter what app i open, Brave, Firefox, Ghostty, Alacritty, it just doesnt popup here, neither does the browser work properly because of it. i get visual glitches in any chromium based browser with h/w accel enabled.

{
  config,
  lib,
  pkgs,
  ...
}: {
  services.xserver.videoDrivers = ["nvidia"];

  hardware.graphics = {
    enable = true;
    enable32Bit = true;
    extraPackages = with pkgs; [
      nvidia-vaapi-driver
    ];
  };

  hardware.nvidia = {
    modesetting.enable = true;
    powerManagement = {
      enable = true;
      finegrained = true;
    };
    dynamicBoost.enable = true;
    prime = {
      offload.enable = true;
      offload.enableOffloadCmd = true;
      amdgpuBusId = "PCI:5:0:0";
      nvidiaBusId = "PCI:1:0:0";
    };
    nvidiaSettings = true;
    # package = config.boot.kernelPackages.nvidiaPackages.beta;
    open = false;
    package = config.boot.kernelPackages.nvidiaPackages.mkDriver {
      version = "570.86.16"; # use new 570 drivers
      sha256_64bit = "sha256-RWPqS7ZUJH9JEAWlfHLGdqrNlavhaR1xMyzs8lJhy9U=";
      openSha256 = "sha256-DuVNA63+pJ8IB7Tw2gM4HbwlOh1bcDg2AN2mbEU9VPE=";
      settingsSha256 = "sha256-9rtqh64TyhDF5fFAYiWl3oDHzKJqyOW3abpcf2iNRT8=";
      usePersistenced = false;
    };
  };

  boot = {
    # kernelPackages = lib.mkForce pkgs.linuxKernel.packages.linux_xanmod;
    kernelPackages = pkgs.linuxPackages_latest;

    kernelParams = lib.mkMerge [
      ["nvidia-drm.fbdev=1"]
      [
        "nvidia.NVreg_UsePageAttributeTable=1" # why this isn't default is beyond me.
        "nvidia_modeset.disable_vrr_memclk_switch=1" # stop really high memclk when vrr is in use.
      ]
      (lib.mkIf config.hardware.nvidia.powerManagement.enable [
        "nvidia.NVreg_TemporaryFilePath=/var/tmp" # store on disk, not /tmp which is on RAM
      ])
    ];

    blacklistedKernelModules = ["nouveau"];
  };

  environment = {
    systemPackages = (
      with pkgs; [
        # nvidia-vaapi-driver
        # # libva
        libva-utils
        # nvidia-utils
        # # libvdpau-va-gl
        # # vaapiVdpau
        # # libva-vdpau-driver
        nvtopPackages.full
        nvidia-container-toolkit
      ]
    );
    # sessionVariables = {
    #   "__EGL_VENDOR_LIBRARY_FILENAMES" = "${config.hardware.nvidia.package}/share/glvnd/egl_vendor.d/10_nvidia.json";
    # };

    variables = {
      NVD_BACKEND = "direct";
      LIBVA_DRIVER_NAME = "nvidia";
      MOZ_DISABLE_RDD_SANDBOX = "1";
      # Required to run the correct GBM backend for nvidia GPUs on wayland
      GBM_BACKEND = "nvidia-drm";
      # Apparently, without this nouveau may attempt to be used instead
      # (despite it being blacklisted)
      __GLX_VENDOR_LIBRARY_NAME = "nvidia";
      # Hardware cursors are currently broken on wlroots
      WLR_NO_HARDWARE_CURSORS = "1";
    };
  };

  # environment.variables = {
  #   # references -> https://github.com/TLATER/dotfiles/blob/e633196dca42d96f42f9aa9016fa8d307959232f/home-config/config/graphical-applications/firefox.nix#L68
  #   __NV_PRIME_RENDER_OFFLOAD = 1;
  #   __NV_PRIME_RENDER_OFFLOAD_PROVIDER = "NVIDIA-G0";
  #   __VK_LAYER_NV_optimus = "NVIDIA_only";
  #   # Required to run the correct GBM backend for nvidia GPUs on wayland
  #   # Apparently, without this nouveau may attempt to be used instead
  #   # (despite it being blacklisted)
  #   # GBM_BACKEND = "nvidia-drm";
  #   # Hardware cursors are currently broken on nvidia
  #   WLR_NO_HARDWARE_CURSORS = "0";
  #   # In order to automatically launch Steam in offload mode, you need to add the following to your ~/.bashrc:
  #   XDG_DATA_HOME = "$HOME/.local/share";
  #   # from https://github.com/TLATER/dotfiles/blob/e633195dca42d96f42f9aa9016fa8d307959232f/nixos-config/yui/nvidia.nix#L33
  #   # Necessary to correctly enable va-api (video codec hardware
  #   # acceleration). If this isn't set, the libvdpau backend will be
  #   # picked, and that one doesn't work with most things, including
  #   # Firefox.
  #   LIBVA_DRIVER_NAME = "nvidia";
  #   __GLX_VENDOR_LIBRARY_NAME = "nvidia";
  #   # Required to use va-api it in Firefox. See
  #   # https://github.com/elFarto/nvidia-vaapi-driver/issues/95
  #   MOZ_DISABLE_RDD_SANDBOX = "0";
  #   # It appears that the normal rendering mode is broken on recent
  #   # nvidia drivers:
  #   # https://github.com/elFarto/nvidia-vaapi-driver/issues/212#issuecomment-1585584038
  #   NVD_BACKEND = "direct";
  #   # Required for firefox 97+, see:
  #   # https://github.com/elFarto/nvidia-vaapi-driver#firefox
  #   EGL_PLATFORM = "wayland";
  # };

i rebooted my laptop and now it is using the dgpu

❯ nvidia-smi
Mon Feb  3 10:28:30 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 570.86.16              Driver Version: 570.86.16      CUDA Version: 12.8     |
|-----------------------------------------+------------------------+----------------------+
| GPU  Name                 Persistence-M | Bus-Id          Disp.A | Volatile Uncorr. ECC |
| Fan  Temp   Perf          Pwr:Usage/Cap |           Memory-Usage | GPU-Util  Compute M. |
|                                         |                        |               MIG M. |
|=========================================+========================+======================|
|   0  NVIDIA GeForce RTX 3050 ...    Off |   00000000:01:00.0 Off |                  N/A |
| N/A   40C    P5             11W /   75W |     466MiB /   4096MiB |     20%      Default |
|                                         |                        |                  N/A |
+-----------------------------------------+------------------------+----------------------+

+-----------------------------------------------------------------------------------------+
| Processes:                                                                              |
|  GPU   GI   CI              PID   Type   Process name                        GPU Memory |
|        ID   ID                                                               Usage      |
|=========================================================================================|
|    0   N/A  N/A            3161      G   ...me-shell-47.3/bin/gnome-shell        180MiB |
|    0   N/A  N/A            3806      G   ...-xwayland-24.1.4/bin/Xwayland          2MiB |
|    0   N/A  N/A            3957      G   ...current-system/sw/bin/ghostty         31MiB |
|    0   N/A  N/A            4367      G   /app/zen/zen                            203MiB |
+-----------------------------------------------------------------------------------------+

and the brightness control is gone, i cannot switch from 60hz to 144hz,

journalctl -p 2 -b output is

Feb 03 10:27:23 leptup kernel: ACPI BIOS Error (bug): Could not resolve symbol [\_TZ.THRM._SCP.CTYP], AE_NOT_FOUND (20240827/psargs-332)
Feb 03 10:27:23 leptup kernel: ACPI Error: Aborting method \_TZ.THRM._SCP due to previous error (AE_NOT_FOUND) (20240827/psparse-529)
Feb 03 10:27:24 leptup kernel:
Feb 03 10:27:27 leptup kernel: amdgpu 0000:05:00.0: amdgpu: get invalid ip discovery binary signature
Feb 03 10:27:27 leptup kernel: [drm:amdgpu_discovery_set_ip_blocks [amdgpu]] *ERROR* amdgpu_discovery_init failed
Feb 03 10:27:27 leptup kernel: amdgpu 0000:05:00.0: amdgpu: Fatal error during GPU init
Feb 03 10:27:27 leptup kernel: amdgpu 0000:05:00.0: probe with driver amdgpu failed with error -22
Feb 03 10:27:28 leptup bluetoothd[1337]: profiles/audio/bap.c:bap_adapter_probe() BAP requires ISO Socket which is not enabled
Feb 03 10:27:28 leptup bluetoothd[1337]: bap: Operation not supported (95)
Feb 03 10:27:28 leptup bluetoothd[1337]: profiles/audio/csip.c:csis_server_probe() Unable to create CSIP instance
Feb 03 10:27:28 leptup bluetoothd[1337]: csis: Invalid argument (22)
Feb 03 10:27:30 leptup systemd[1950]: Failed to start Docker Application Container Engine (Rootless).
Feb 03 10:27:32 leptup systemd[1950]: Failed to start Docker Application Container Engine (Rootless).
Feb 03 10:27:34 leptup systemd[1950]: Failed to start Docker Application Container Engine (Rootless).
Feb 03 10:27:34 leptup gdm-password][2778]: gkr-pam: unable to locate daemon control file
Feb 03 10:27:36 leptup systemd[1950]: Failed to start Docker Application Container Engine (Rootless).
Feb 03 10:27:39 leptup gdm-password][2967]: gkr-pam: unable to locate daemon control file
Feb 03 10:27:40 leptup systemd[2981]: Failed to start Application launched by gnome-session-binary.
Feb 03 10:27:40 leptup systemd[2981]: Failed to start Application launched by gnome-session-binary.
Feb 03 10:27:41 leptup systemd[2981]: Failed to start Application launched by gnome-session-binary.
Feb 03 10:29:24 leptup kernel: ==================================================================
Feb 03 10:29:24 leptup kernel: BUG: KFENCE: use-after-free read in nv_dma_release_sgt+0x29/0x70 [nvidia]
Feb 03 10:29:24 leptup kernel: Use-after-free read at 0x00000000b3383814 (in kfence-#65):
Feb 03 10:29:24 leptup kernel:
Feb 03 10:29:24 leptup kernel:
Feb 03 10:29:24 leptup kernel: CPU: 1 UID: 1000 PID: 3161 Comm: .gnome-shell-wr Tainted: P           O       6.13.0 #1-NixOS
Feb 03 10:29:24 leptup kernel: Tainted: [P]=PROPRIETARY_MODULE, [O]=OOT_MODULE
Feb 03 10:29:24 leptup kernel: Hardware name: ASUSTeK COMPUTER INC. ASUS TUF Gaming A17 FA706IC_FA766IC/FA706IC, BIOS FA706IC.302 12/28/2022
Feb 03 10:29:24 leptup kernel: ==================================================================
Feb 03 10:29:24 leptup kernel: ==================================================================
Feb 03 10:29:24 leptup kernel: BUG: KFENCE: use-after-free read in nv_dma_release_sgt+0x29/0x70 [nvidia]
Feb 03 10:29:24 leptup kernel: Use-after-free read at 0x0000000086194451 (in kfence-#76):
Feb 03 10:29:24 leptup kernel:
Feb 03 10:29:24 leptup kernel:
Feb 03 10:29:24 leptup kernel: CPU: 1 UID: 1000 PID: 3161 Comm: .gnome-shell-wr Tainted: P    B      O       6.13.0 #1-NixOS
Feb 03 10:29:24 leptup kernel: Tainted: [P]=PROPRIETARY_MODULE, [B]=BAD_PAGE, [O]=OOT_MODULE
Feb 03 10:29:24 leptup kernel: Hardware name: ASUSTeK COMPUTER INC. ASUS TUF Gaming A17 FA706IC_FA766IC/FA706IC, BIOS FA706IC.302 12/28/2022
Feb 03 10:29:24 leptup kernel: ==================================================================

the gpu is being used,

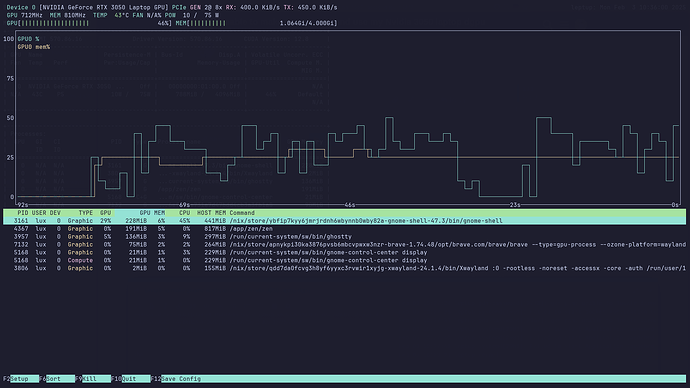

nvtop output with youtube running on zen browser(firefox)

will report again after a reboot

after the reboot it is back to before, nvidia-smi and nvtop reports no use of dgpu. the brightness control is working and the monitor is back to 144hz default. 1 out of like 10 boots is like this, and a hard reset fixes it.

Well, yeah, you’re running with prime, you need to set the offload env vars to run anything on your dGPU.

If you enable the option, you can use nvidia-offload <command> to run your applications on the dGPU.

I’d be more concerned about the inconsistent behavior here, but quite frankly you’ve made a bit of a mess, so it’s not too surprising to me that things will go wrong.

I’ve only recently gotten access to a system to test multi-GPU stuff on, and haven’t had time to test it with GNOME (not even completely set it up on wlroots, frankly). But if you’d like to have a nosey, this module does the trick for me currently: dotfiles/nixos-modules/nvidia at 4c4f723c83313a8a626ea9de2244fcdba3bebea9 · TLATER/dotfiles · GitHub

Caveat the commit messages, and this issue. There’s also some stuff still specific to my setup in there, at a glance at least:

  • You do not need to use the xanmod kernel - though using -latest will cause you pain
  • The wlroots vars are not universally useful
  • Your CPU might not support PAT
  • The comment about my monitor doesn’t apply to anyone else of course

Anything that isn’t set is likely very deliberate, so ideally avoid defining anything else.

I’ve deliberately left very explicit comments in the code explaining why I do what I do; give them - including doc comments - a read. Your config has a bunch of workarounds that are long irrelevant (or baked into the NixOS module by default for the kernels that need it). You also define a bunch of wlroots vars when you use GNOME which probably doesn’t hurt, but is pointless.

Eventually I’ll get a moment to finish up that config, and then hopefully time to figure out how gnome differs from wlroots.

Chances are the current prime settings are completely pointless for most wayland-based compositors, and the random GPU assignment you seem to see probably is the result of that, so you may need to dig into how GNOME picks the GPU to render with. Tell me if you figure that out - and please link to docs - that’ll save me a bunch of effort when I try to generalize the module.

  • that primary config is what i made out of your and eljamm’s conifg, the env vars are merged for nvidia and firefox.
  • I have two configs, one is the default and another has prime.sync force enabled,
    specialisation = {
        gaming-time.configuration = {
          hardware.nvidia = {
            prime.sync.enable = lib.mkForce true;
            powerManagement.enable = lib.mkForce false;
            powerManagement.finegrained = lib.mkForce false;
            prime.offload = {
              enable = lib.mkForce false;
              enableOffloadCmd = lib.mkForce false;
            };
        };
      };

    in both of these specializations i have noticed the similar behavior of no app using dgpu, but, when i started a game on steam (on gaming-time , it popped up on nvidia-smi. asap, i rebooted to my default config, and used the offload command to run my browser, and it popped up too.
    What i infer from this is; each app needs to be ran with nvidia-offload for them to use the dgpu when using prime.

now what i want is (i am sorry i couldnt put it to words without making it haphazard)

for now, i am going to try to disable prime on my gaming profile and test and report back.
i would try to write an edit for nixos.wifi after this is finished, so that this can be covered in more detail.

Exactly! A lot of the configuration you set is superfluous, you were just missing that detail.

More specifically, these variables need to be set:

export __NV_PRIME_RENDER_OFFLOAD=1
export __NV_PRIME_RENDER_OFFLOAD_PROVIDER=NVIDIA-G0
export __GLX_VENDOR_LIBRARY_NAME=nvidia
export __VK_LAYER_NV_optimus=NVIDIA_only

You can use your applications’ .desktop files, or steam’s pre-start scripts, to do this if you don’t want to use nvidia-offload explicitly everywhere. That command also just sets those variables before executing the binary in question, by the way.

Please don’t touch the abandoned wiki, use the official one: NVIDIA - NixOS Wiki

You’ll also find that that wiki page already covers this :wink:

i’m so fkn r3tarded, i used to think nixos.wiki is the newer one and wiki.nixos.org is the older one, i went the whole year thinking that. now i gotta reread the new stuff.

google pushes nixos.wiki on the top too :sob:

It has a much better page ranking thanks to being older. Every time you post a link to the old wiki Google pushes it a little higher, too :wink:

@TLATER i tried this

hardware.nvidia = {
        prime.reverseSync.enable = lib.mkForce true;
        powerManagement.enable = lib.mkForce false;
        powerManagement.finegrained = lib.mkForce false;
        prime.offload = {
          enable = lib.mkForce false;
          enableOffloadCmd = lib.mkForce false;
        };
      };

      environment.variables = {
        __NV_PRIME_RENDER_OFFLOAD = "1";
        __NV_PRIME_RENDER_OFFLOAD_PROVIDER = "NVIDIA-G0";
        __GLX_VENDOR_LIBRARY_NAME = "nvidia";
        __VK_LAYER_NV_optimus = "NVIDIA_only";
      };

i looked up for reverseSync, but it didnt have any effect for me (most probably because my laptop doesnt have a MUX switch)
apart from that, i tried setting these in my config using environment.variables, no change

Don’t use the variables globally, place them in the .desktop files of each application you want to have running on the dGPU, and use prime in offload mode

is there a way to set them using the Nix way? it will be a kinda pain in the butt to do it manually for each app and stuff.
on top i use ghostty and it is giving this error:

❯ nvidia-offload ghostty
info: ghostty version=1.0.2-04d3636-nix
info: ghostty build optimize=ReleaseFast
info: runtime=apprt.Runtime.gtk
info: font_backend=font.main.Backend.fontconfig_freetype
info: dependency harfbuzz=8.4.0
info: dependency fontconfig=21402
info: renderer=renderer.OpenGL
info: libxev backend=main.Backend.io_uring
info(os): setlocale from env result=LC_CTYPE=en_US.UTF-8;LC_NUMERIC=en_IN.UTF-8;LC_TIME=en_IN.UTF-8;LC_COLLATE=en_US.UTF-8;LC_MONETARY=en_IN.UTF-8;LC_MESSAGES=en_US.UTF-8;LC_PAPER=en_IN.UTF-8;LC_NAME=en_IN;LC_ADDRESS=en_IN.UTF-8;LC_TELEPHONE=en_IN.UTF-8;LC_MEASUREMENT=en_IN.UTF-8;LC_IDENTIFICATION=en_IN
info(gtk): GTK version build=4.16.3 runtime=4.16.3
info: reading configuration file path=/home/lux/.config/ghostty/config
info(config): default shell source=env value=/run/current-system/sw/bin/nu
warning(gtk): setting GDK_DEBUG=gl-no-fractional
warning(gtk): setting GDK_DISABLE=gles-api,vulkan
warning(gtk): setting GSK_RENDERER=opengl
info(gtk): libadwaita version build=1.6.2 runtime=1.6.2

(process:10989): GLib-GIO-WARNING **: 21:20:28.907: Your application did not unregister from D-Bus before destruction. Consider using g_application_run().

There is, but you’d still have to do it for each application you want to offload. You’d need to use .overrideAttrs or symlinkJoin to add them to the .desktop files of each package.

It’s not really intended to be done for every application, only a select few where giving up battery life for performance is worth it; that is, primarily steam (and its child processes), and maybe your browser. Most other things won’t gain much from being run on a dGPU, you e.g. don’t really need 2000fps for rendering a terminal, if anything using the dGPU will result in slightly more input lag.

If you want to use your dGPU for everything you should indeed use sync instead (not reverse sync), then you won’t need those variables.

There’s no error, unfortunately, it just crashes. Is there anything more useful in journalctl -e?

i couldnt find a less complicated way for it, can you show me an example for maybe firefox or zen browser?

for ghostty journalctl -e reports;

Feb 04 09:44:03 leptup .ghostty-wrappe[21420]: ../gdk/wayland/gdkcursor-wayland.c:210 cursor image size (30) not an integer multiple of theme size (24)
Feb 04 09:44:03 leptup ghostty[21420]: warning(stream): unimplemented OSC callback: terminal.osc.Command{ .end_of_command = terminal.osc.Command.Command__struct_97330{ .exit_code = 0 } }
Feb 04 09:44:03 leptup ghostty[21420]: warning(stream): unimplemented OSC command: end_of_command

neither have i been able to run brave browser on my dgpu. i tried everything, i tried to mess with chrome:flags too. i tried offload-cmd as well.
